AX1
PIXELTUBE


28W RGBW LEDs – 180° Beam Angle
AX1 is a powerful pixel controllable LED RGBW baton that can be mounted at event and film sites to light up people and objects or create indirect lighting effects. A highly creative device that offers an infinite range of possibilities.




技术参数

光学
颜色:RGBW
LED额定功率:28W
光照强度:955Lx
频闪效果:0-25Hz
出光角度:180°
像素16
供电
电池:LG化学锂离子电池
电池使用寿命:充放电循环300次后剩余70%电力
电池运行时间:最长续航时间20小时
充电时间:7小时
输入电压(充电时):90-264V 47-63Hz
输入电压(使用时):48V 0.5A
控制
无线模块: 865-870 MHz 902-928 MHZ 2.4GHz
范围:300m | 330 Yards
DMX:不支持有线DMX 无线(CRMX&其他,包括W-DMX G5,City Theatrical)
结构

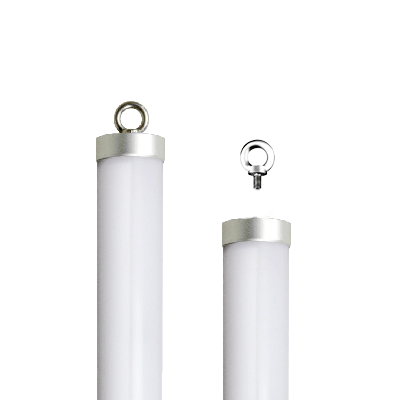

H外观:聚碳酸酯+金属端盖
IP防护等级:IP65
相对湿度:0-100%
使用环境温度:0-40℃|32-104°F
产品重量:1kg|2.2Lbs
尺寸大小:Φ42 x 1035mm|Φ1.6" x H40.7"
控制设备

Astera ARC1

AsteraBox

CRMX Nova TX

W-DMX transmitter

固件说明

Astera 系统

智能(双向)控制系统,红外遥控、无线DMX和应用程序协同工作,可以快速方便地设置、监控和调整,从而实现大型活动无线照明控制。
App控制(UHF)

Create complex programs out of colors, effects and settings. The lights will remember and repeat these effects without requiring a constant wireless link.
Quickly create groups of lights, assign positions and select which Tube should receive commands.

Monitor

Keep a complete overview over the status and all settings of your lights while you operate them.
View battery status, radio signal, DMX address and which lights you have targeted.
Diagnose individual lights and even get informed if a light is being moved or switched off.
This works while you control lights by the app but also if lights are controlled via DMX.

Set Up Faster

Set up your lights conveniently out of the distance.
Set DMX address and DMX footprint for one or several Helios, Hyperion, Titan Tube or Spotlights; 50 units can be prepared in less than 5 minutes out of the distance.
After your job, do a quick master reset of all settings and the lights are ready for the next event.

无线DMX (2.4GHz)

LumenRadio

The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable wireless DMX protocol available.

Compatibility

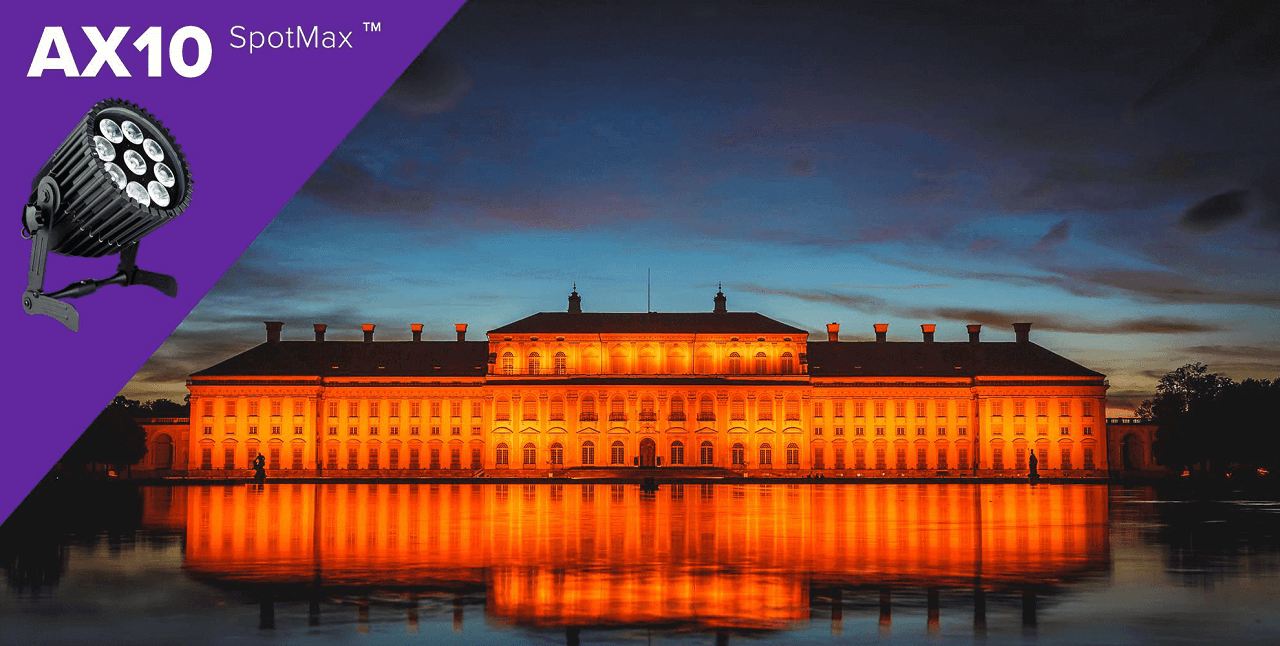

The AX10 SpotMax and all Astera Battery Powered PAR carry the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.

红外遥控

Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the lights.
When programming lights with the AsteraApp the IR remote can be used for confirming settings on individual lights.
