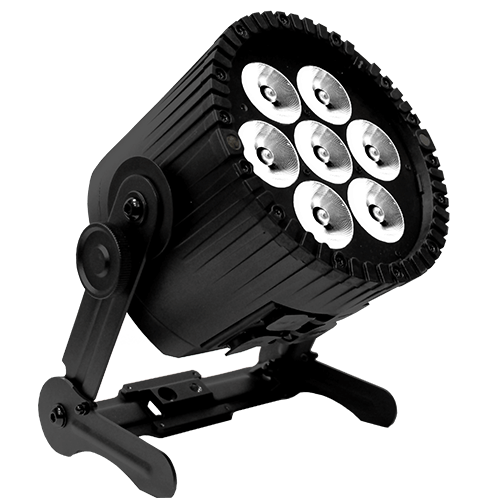

AX5的升级版 | 关键规格:105W,Titan LED引擎
AX9采用了AX5成功的三合一概念,它不仅可用于无线灯具和优异的顶光效果,同时也可作为有限筒灯应用在更长时间或更大的装置中。它是一种极具成本效益的灯具,也使您的投资降至最低。
得益于其自身的TitanLED引擎,AX9外形紧凑而轻便,却拥有极高的亮度,和业界领先的色彩以及白色色调。

光学
型号:AX9LED 引擎集成: Titan LED引擎集成
颜色:红色、绿色、蓝色、薄荷色、琥珀色
LED总功率:105W
LED 额定功率:70W
光输出: 2700K, 3200K, 5500K:* 2497 lm / 3008 lm / 2869 lm
辐射率 @2m – 2700k, 3200k, 5500k*: 9700 lx / 9900 lx / 9600 lx
显色指数 (CRI(Ra)/TLCI 3200-6500K*):≥96
出光角度:13°
频闪效果:0 – 25Hz
像素:1
*典型值
供电
电池寿命:充放电循环300次后剩余70%电力电池运行时间:长达20小时
充电时间(标称):5小时
交流输入电压:100-240V AC, 50/60Hz, 2.3A, 120W; 100-240VAC, 50/60Hz, 2.3A; 2.3A/115VAC ~ 1.1A/230VAC; 110W
控制
有线DMX内置CRMX 接收器
无线通信频率:CRMX 2.4GHz, UHF, Bluetooth
范围:300米/330码(蓝牙)
结构
外壳:铝IP防护等级:IP65
使用环境温度(°C/°F): 0° – 40° / 32° – 104°
重量(千克/磅): 5.66 / 12.5
尺寸(毫米/英寸): 175 x 222 x 256 / 6.9 x 8.7 x 10.1
Egg Crate
(AX9-EGC)
PowerCon True1 AC Cable
(AX5-CHR)




Titan LED引擎
业界领先的颜色和白色色调

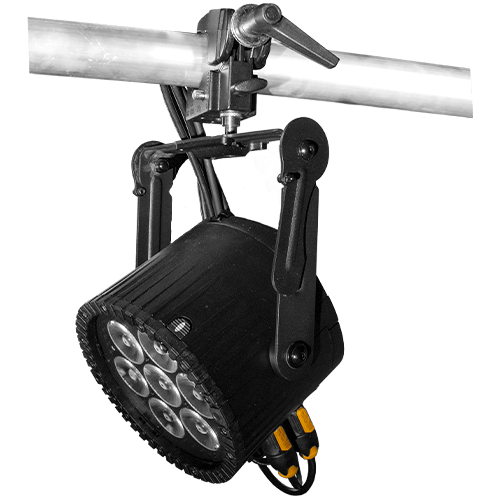

支架升级
可拆卸,自带悬挂轨道,3/8“螺纹和1/2”孔洞

Titan 按键
包括专用的亮度和颜色按键

内置蓝牙

滤光选项
标配2个滤光片

精致的外壳
改变您的筒灯颜色以适配任何场景

快速释放的支架
调整角度以达成快速有效的墙上照明

充电便捷
将AX9倒置放入充电板中或放入充电箱即可充电
AX5与AX9对比/h1>



Astera 系统
智能控制系统:红外遥控器、无线DMX和APP程序协同工作,可以快速方便地设置、监控和调整整体装置。
Create complex programs out of colors, effects, and settings. AX9 PowerPAR will remember and repeat these effects without requiring a constant wireless link.
Quickly create groups of lights, assign positions and select which Tube should receive commands.
Monitor
Keep a complete overview of the status and all settings of your AX9 while you operate them.
View battery status, radio signal, DMX address and which lights you have targeted.
Diagnose individual AX9 PowerPAR and even get informed if a light is being moved or switched off.
This works while you control lights by the app but also if AX9 PowerPAR is controlled via DMX.
Set Up Faster
Set up your Film Light conveniently out of the distance.
Set DMX address and DMX footprint for one or several AX9 PowerPAR; 50 units can be prepared in less than 5 minutes out of the distance.
After your job, do a quick master reset of all settings or a partial one of only selected settings.
LumenRadio
The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable wireless DMX protocol available.
Compatibility
We included the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.
Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the lights.
When programming lights with the AsteraApp the IR remote can be used for confirming settings on individual lights.
独特性能

状态反馈
可针对目标灯具进行监测、设置状态检查、配置DMX地址码及DMX配置文件

无缝运行
设置使用的时间长度,确保最大亮度下的情况下不会耗尽电源

颜色校准
针对目标灯具进行校对,以维持100%的颜色一致性、统一的色温及标准的滤光片

效果
快速创建颜色及效果的编程,并同时设定多个编程与灯光效果以导入场景应用

稳定无频闪
采用PWM技术,避免灯具在使用时出现频闪

绿色/洋红色校正
在拍摄期间即时调整绿色/洋红色,以减少后期制作工作

预定待命
切换到省电待机模式,并设定启动时间,灯具将会在预定时间下开始运行

动态功率提升
此独特的功能使灯具在显示最大亮度的状态下,强化白光以外的色彩颜色

紧急照明
当AC电源被切断时,转换成白光以确保活动顺利进行

防盗系统
当灯具被移动时,会发出警示闪烁及警示音,并透过AsteraApp发送通知

DJ功能
透过BPM测试软件,自动分析节拍并透过程序互相匹配,按下闪光灯按钮可触发特殊效果
